Technical Data:
a) Forming Product Specification:
1. Diameter: 桅400 mm fibre reinforced resin grinding wheel.
2. Thickness: 1.0 ~ 6.0 mm.
3. Aperture: As design drawing supply by buyer.

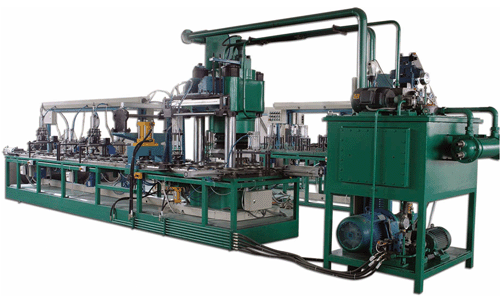

b) Structure: 16 mould,push type. Including moulded cover board transit system.
c) The Pressure of Four-column Presses: 400 MT;
d) Moulding Methods: Auto scale material,Auto Feeding,Constant Pressure Moulding.
e) Mould Rotation Speed: 70 ~ 80 rpm.
f) Working Speed: 1800 - 2400 pcs/08hours;
g) Operator: 03 persons;
h) Main Components of PLC Use MITSUBISHI Products.
